BDS 3″ Radius Arm Suspension System Diesel #1624H (Full Kit)

BDS 3″ Radius Arm Suspension System Diesel #1624H (Full Kit)

$1,760.95

Compare
Category: Tag:

Description

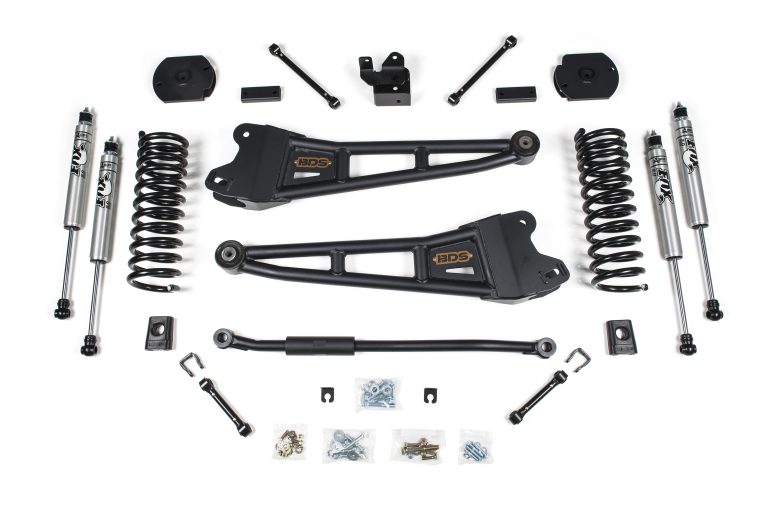

Description:This kit is perfect for those looking for all the performance of a full-out lift system but with the height of a leveling kit. This new system is built around massive tubular replacement radius arms. These arms are built to handle far more than the factory parts they are replacing. The design incorporates a factory style rubber bushing mount at the frame to keep the NVH levels in check. The 3-1/4" diameter bushings are huge and have a long, maintenance-free service life. The new radius arms mount right into the factory locations so installation is simple and clean. Factory alignment adjustability is maintained using the OE eccentric adjusters. The arm geometry is set to keep the axle angle in the factory specs while compensating for the 3" of lift. A copper-anodized aluminum BDS name plate is mounted each arm.

In addition to the heavy-duty, high-performance radius arms, this new system features dual-rate front coil springs that improve the ride and handling of these 3/4 ton trucks both on and off road. Our popular heavy-duty turnbuckle style adjustable track bar is included to center the axle. BDS greaseable front sway bar links reset the sway bar to the optimum angle and round out the main front components. These links utilize spherical polyurethane bushings for increased articulation and performance. Add in the front brake line relocation brackets and a choice of NX² series or FOX 2.0 Performance Series shocks and this system is set to handle any terrain.

The rear system utilizes 1.25" fabricated steel coil spring spacers to level out the stance. A new raised track bar bracket centers up the axle while bump stop extensions and greaseable extended sway bar links (same design as the fronts) round out the rear components.

Important Kit Notes

  • Not compatible with factory rear air ride vehicles

2014-2017 Dodge / Ram 2500 Pickup w/ Rear Coil Springs

Additional information

Weight 231.0 lbs
